De HAVILLAND SEA VIXEN

The prototype of the DH.110 Sea Vixen, first flew on the 26th of September 1951 piloted by John Cunningham.
The aircraft was an immediate success and by the follwing year it was regularily flying faster than the speed of sound.

The DH.100 was demonstrating at Farnborough airshow on the 6th of September 1952 when tradegy struck.

Whilst breaking the sound barrier the aircraft disintergrated with one of the engines hitting spectators at the end of the runway killing 31 people and the two crew, test pilot John Derry and Tony Richards.

The failure of the aircraft was found to be a failure of the end sections of the main spar which resulted in the outer ends of the wings shearing off causing the aircraft to lurch violently and break up.

Due to this incident modifications were made to the second prototype but the aircraft didn't fly again until July of 1954. The RAF had lost any interest of the DH.110 by then, however, the Fleet Air Arm adopted interest in the aircraft as a replacement for its Sea Venoms.

A navalised prototype was produced in 1955 making its first flight that year and made an arrestor carrie landing on HMS Ark Royal a year later.

The first Sea Vixen, designated FAW.20, first flew on the 20th of March 1957 and was later redesignated as FAW.1.

The Sea Vixen had a twin boom tail as used by the Sea Vampire and the Sea Venom . The pilots canopy is off-set to the left hand side with the observer housed within the fuselague to the right with access through a flush top hatch.

The Sea Vixen became the first British aircraft that was not armed with machine guns or cannon but soley fitted with missiles, rockets and bombs.

The deign of the Sea Vixen was improved to include an enlarged tail boom allowing for additional fuel tanks, improved escape system and more room for ECM and designated FAW.2

The FAW.2 was able to carry Firestreak missiles, Red Top AAM, four SNEB rocket pods and air-to-ground Bullpup missiles.

The FAW.2 was distinguishable from the FAW.1 by the tail booms which extend forward of the leading edge of the wing.

The Sea Vixen FAW.2 first flew in 1962 and served with frontline squadrons in 1964.

The Sea Vixen FAW.1 was phased out from 1966 and the FAW.2 was phased out in 1972. The Sea Vixen was replaced by the
F-4 Phantom II.

Specifications: -
Crew:2
Length:55ft 7in (17m)
Wingspan:50ft 0in (15.24m)
Height:10ft 9in (3.30m)
Empty Weight:22,000lb (9979kg)
Max. Weight:36,000lb (16329kg)
Engines (x2):RR Avon 208s
producing 22,500 lb st.
Max. Speed:650 mph (1050 km/h)
Range:800 miles (1280 km)

Variants: -

Sea Vixen DH.110
Prototype aircraft.
Cannon:
able to be fitted with 4 x 30mm Aden.

Sea Vixen FAW.1
Production aircraft powered by 2 Rolls Royce Avon 208 turbojet engines.
Missiles:
4 x Firestreak AAM,
Rockets:
2 x Microcell unguided 51mm rocket packs
Bomb capacity:
4 x 500lb bombs or 2 x 1000lb bombs.

Sea Vixen FAW.2
Production aircraft
Missiles:
4 x Firestreak AAM,
and Red Top AAM
and Bullpup ATG
Rockets:
4 x SNEB rocket pods

Sea Vixen D.3
Drone aircraft

Sea Vixen TT.2
Target tug aircraft

De HAVILLAND SEA VIXEN
Hawker Hunter          DH Venom
AVIATION TOP 100 - www.avitop.com Avitop.com
De Havilland Sea Vixen

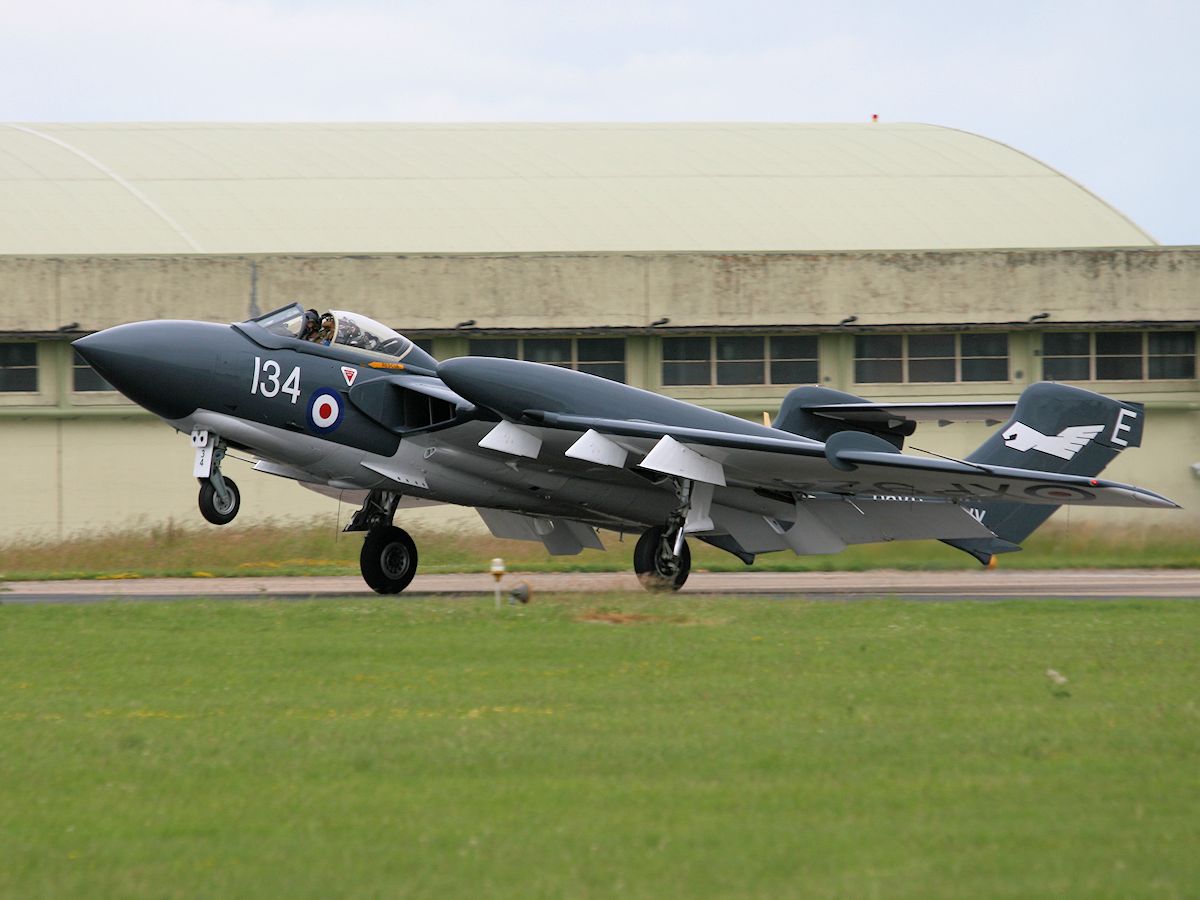

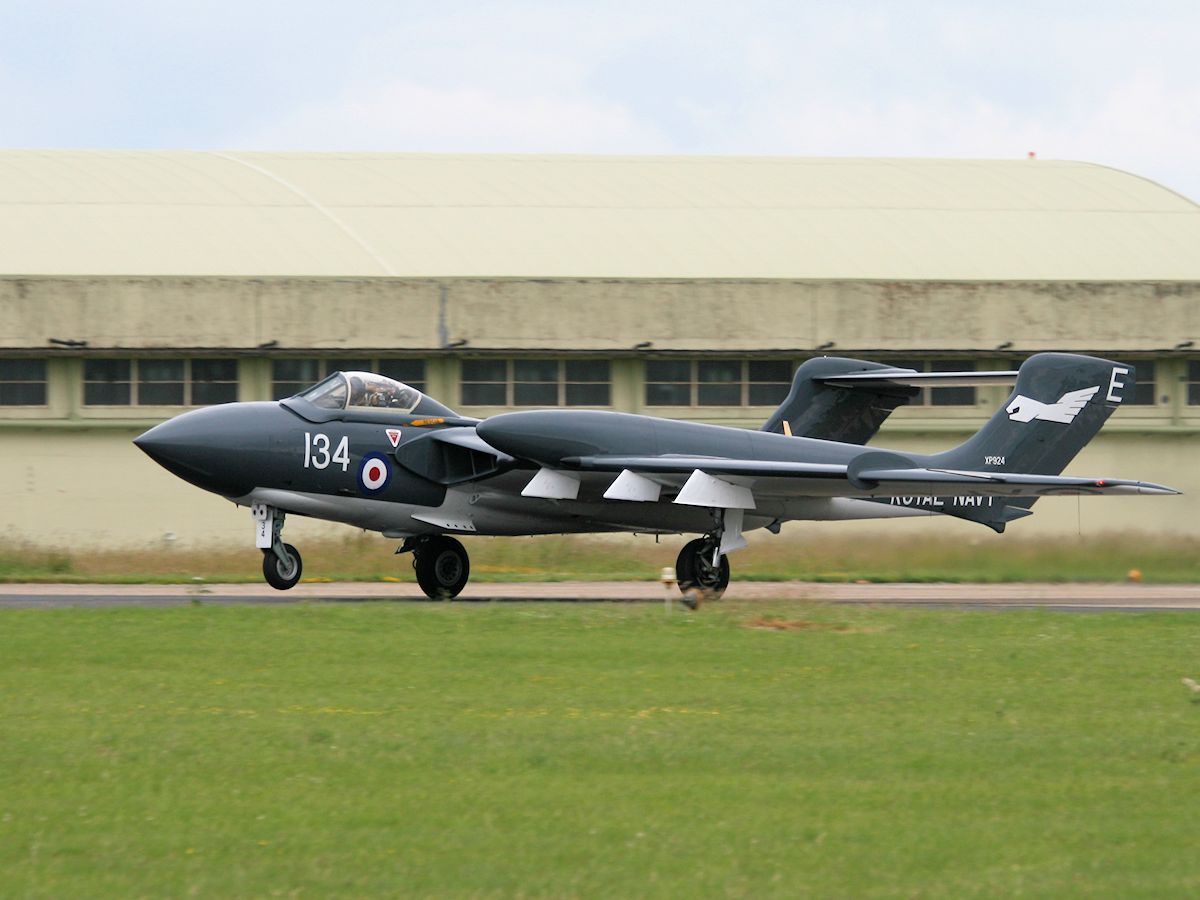

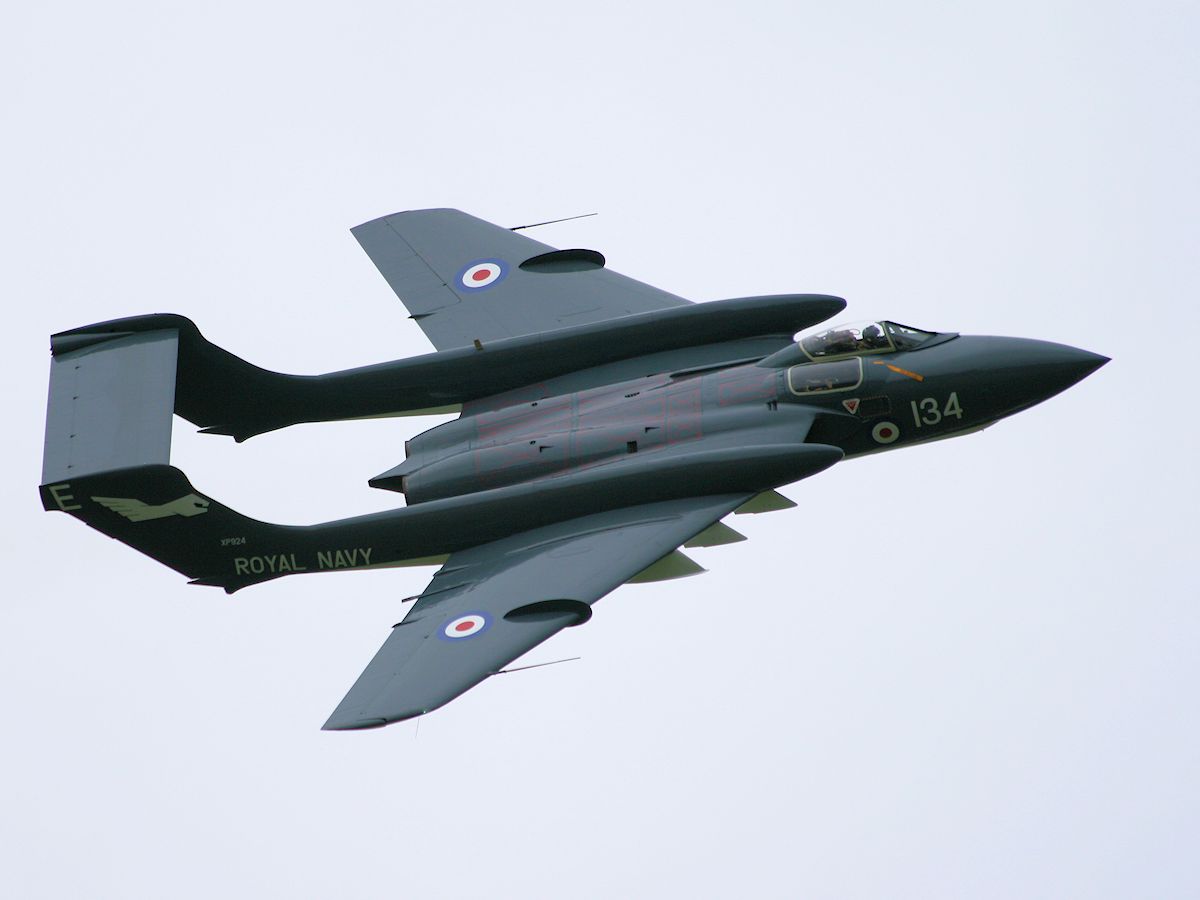

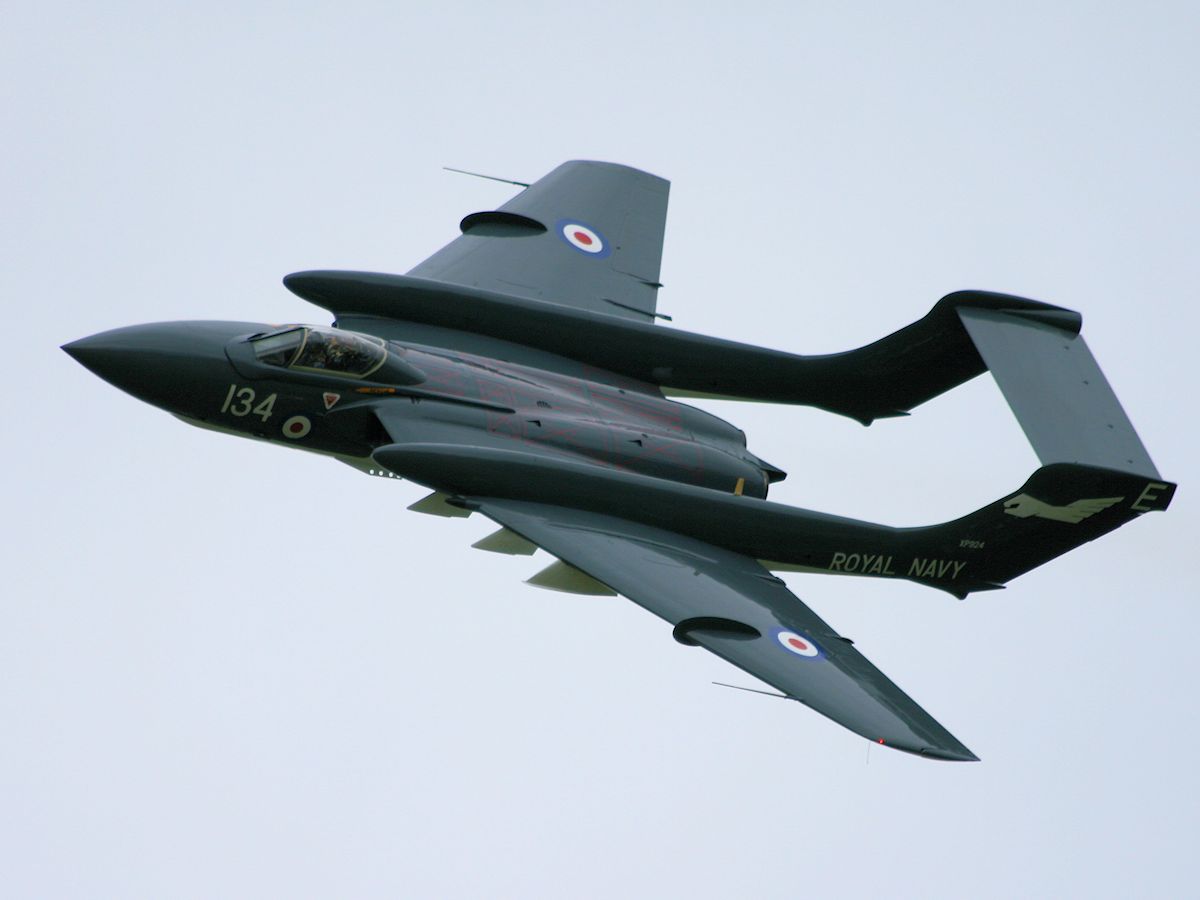

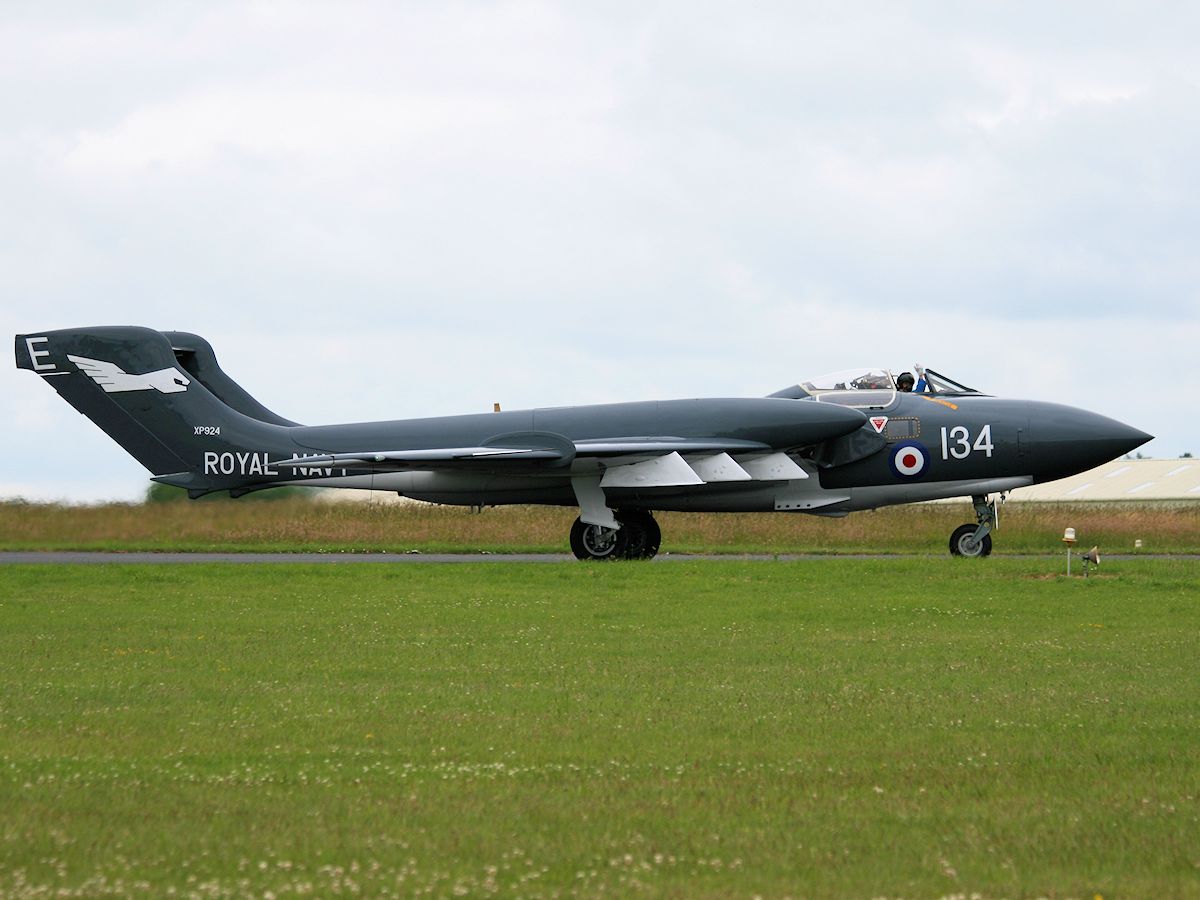

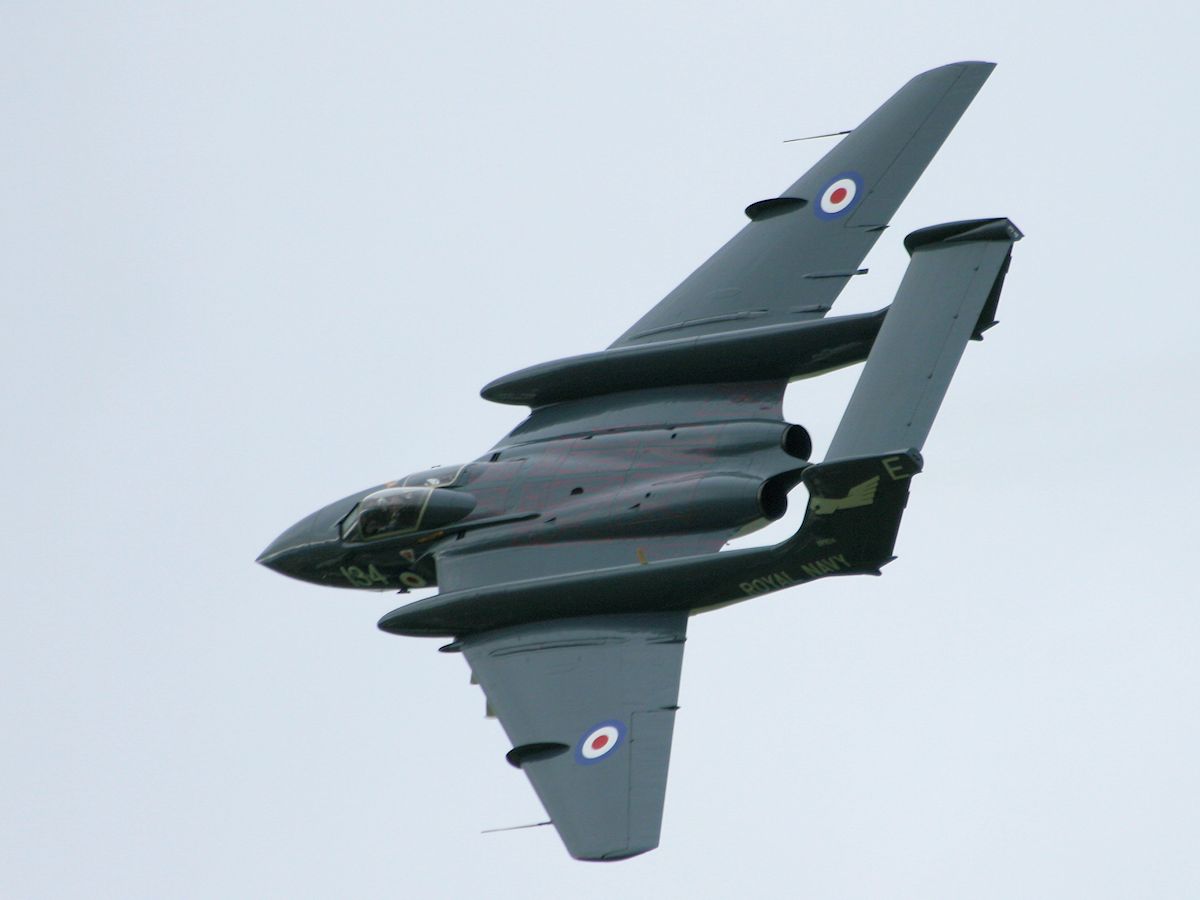

©Nigel Key De Havilland Sea Vixen (Kemble 2009)

Sea Vixen FAW.2, formally of the Royal Navy as XP924 is now on the civil register as G-CVIX and is maintained by de Havilland Aviation Limited.

XP924 entered service with the Royal Navy in 1964 as an FAW.2 model and ended its flying in 1991 as a trainer teaching pilots to fly aircraft by remote control from the ground.

Photographed here at the Cotswold airshow, Kemble in 2009.
Photographs © Nigel Key, Click thumbnail to enlarge.
Sea Vixen (Kemble 2009) Sea Vixen (Kemble 2009) Sea Vixen (Kemble 2009)
Kemble 2009
Kemble 2009
Kemble 2009
Sea Vixen (Kemble 2009) Sea Vixen (Kemble 2009) Sea Vixen (Kemble 2009)
Kemble 2009
Kemble 2009
Kemble 2009
